Tire manufacturing equipment makers, as high-precision processing enterprises, impose extremely stringent requirements on industrial control systems and generally adopt branded products. Nevertheless, shifts in the international landscape and unforeseen pandemic crises in recent years have created pain points for foreign branded products, including supply shortages and lengthy delivery lead times that fail to meet production demands. Thanks to advances in domestic technologies, domestic substitution has emerged as a major industry trend.

We deliver comprehensive automated solutions for companies in the tire industry, predominantly deploying Infcone ICM series servos, ICD series remote IO modules and other products. All equipment features distributed and modular control, supports standard Ethernet industrial Ethernet, and can seamlessly replace well-known foreign brands. It requires no dimensional adjustments or revisions to logic programs, and mixed deployment with foreign devices is fully viable.

Every product in this series holds 100% independent intellectual property rights. Under extreme circumstances, a fully domestic setup (100% domestic components) can be customized to meet client requirements, freeing manufacturers from reliance on technological monopolies held by overseas enterprises.

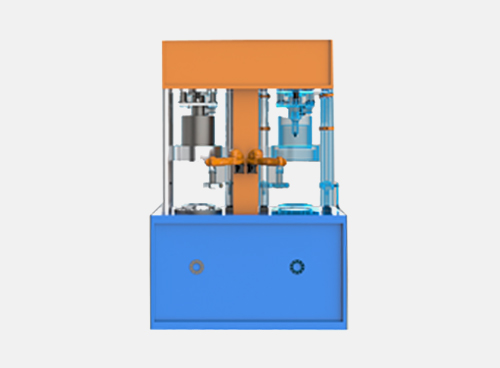

Advantages of Tire Curing Press Solutions
1. Dual closed-loop control mode is supported to achieve high-precision control.
2. Fully localized production with short lead times and rapid after-sales response. Inventory support is available to ease customers' pressure on spare parts stock.
3. The variety and quantity of spare parts can be reduced, significantly cutting hardware costs and subsequent maintenance expenses.
4. Enables localized replacement of imported servo drives without program modifications or mechanical dimension adjustments, and mixed use of different servos is allowed.
5. Features an open and standardized network resource library to enhance the openness and informatization performance of intelligent equipment.
6. Improves production efficiency with low failure rates, standardized modular programs, stable network systems and integrated STO functional safety features.

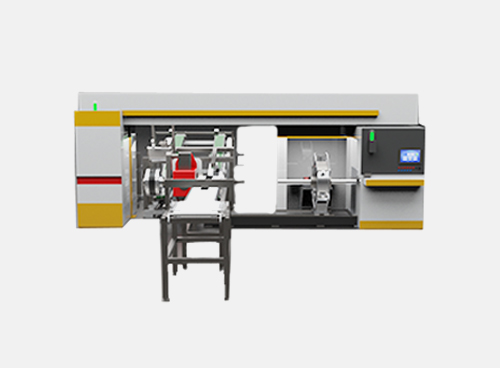

Advantages of Tire Building Machine Solutions
All-Steel Three-Drum Building Machine
1. Application of full-servo multi-axis system: Single CPU + D5 series bus servo axes (0.5-10kw) with functional safety
2. Equipped with high-precision encoders for excellent repetitive positioning accuracy and high production efficiency
3. Complete motion control functions: inching, positioning, following, cam, homing, limit, registration events and torque control
4. Member of ODVA, supporting the standard industrial Ethernet of Ethernet
5. Capable of seamlessly replacing a leading international industrial control brand. Existing programs can be fully converted, and the whole commissioning process from power-on to completion takes only 2 weeks.

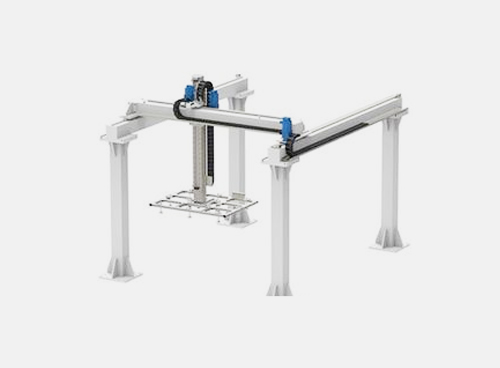

Advantages of Gantry and Truss Solutions
1. Automated equipment for professional high-altitude scenarios, capable of meeting stringent safety requirements and heavy-load operation
2. Adopts ICM-D5S160 servo drive system equipped with multiple high-power servo units (around 30KW) and a shared DC bus
3. External independent laser distance measuring sensors that realize full closed-loop control via the SSI interface
4. Multi-axis coordination, high acceleration and deceleration, stable operation at a speed of 4.2m/s to boost work efficiency
5. Anti-twist beam algorithm to safeguard users' equipment
6. Long-distance wireless communication solution supporting a travel range of 120 meters
7. WCS interface available to facilitate the construction of intelligent factories under Industry 4.0 standards
